Introduction

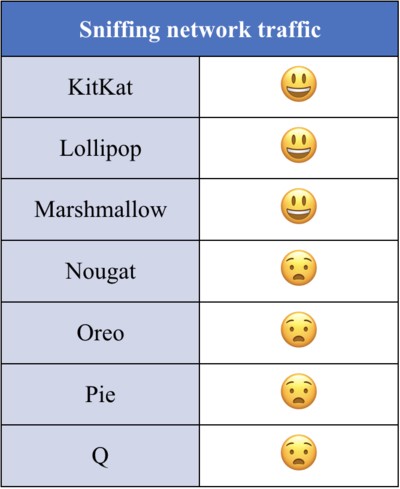

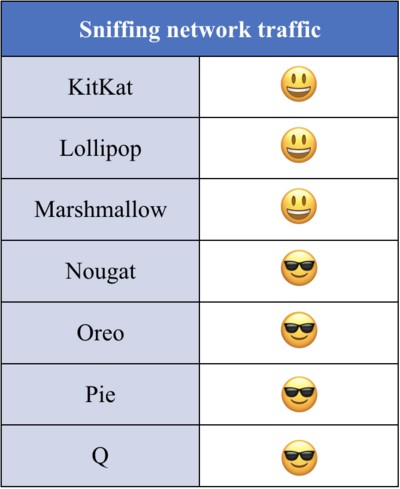

Today I want to write about sniffing network traffic on Android. Let me show you what we had before and what we have after Android Nougat:

In other words, Google removed the feature to sniff a network traffic out of the box in Android Nougat. Furthermore, it means, that you won’t be able to sniff a network traffic in apps from Play Market. Thereby, we should install network security config manually to resurrect sniffing feature. There are two ways to do it:

add network_security_config.xml in the source
inject network_security_config.xml in an .apk file

training/articles/security-config

Addition network_security_config.xml in the source

default

<?xml version="1.0" encoding="utf-8"?>
<manifest ... >
    <application android:networkSecurityConfig="@xml/network_security_config"
                    ... >
        ...
    </application>
</manifest>

custom

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <domain-config>
        <domain includeSubdomains="true">example.com</domain>
        <trust-anchors>
            <certificates src="@raw/my_ca"/>
        </trust-anchors>
    </domain-config>
</network-security-config>

But there is a high probability, that Google may reject apps have network_security_config.xml, because it’s a «care» about peace, rock ‘n’ roll and safety.

Injection network_security_config.xml in an .apk file

Here we are able to build a release .apk, duplicate it and make a network_security_config.xml injection. So, let’s start:

Build an .apk

Clone the repo:

 git clone https://github.com/levyitay/AddSecurityExceptionAndroid.git

Run a script from the repo:
```
 ./addSecurityExceptions.sh yourApp.apk
```
- the script unpacks your .apk via apktool
- injects network_security_config.xml into AndroidManifest.xml
- signs and repacks your .apk
Your app is ready for test, install it and enjoy the sniffing
